Description
The Mount Taishan No.1 Series 15/16 × 27 is a heavy-duty stainless steel multi-wheel roller assembly engineered for high load-bearing performance, strong wear resistance, and smooth, ultra-quiet operation.
Available in 15 mm and 16 mm width options, the assembly has a standard body height of 27 mm and an adjustable overall height of 33–41 mm, allowing accurate alignment and flexible installation.
Multiple wheel configurations are available, ranging from a single-wheel unit to a twelve-wheel assembly. The precision-arranged rollers distribute loads evenly, reduce friction, and provide stable, reliable movement for long-term use.
Key Features
- High load-bearing capacity
- Strong wear resistance
- Smooth and ultra-quiet operation
- Durable stainless steel construction
- Available widths: 15 mm or 16 mm
- Standard body height: 27 mm
- Adjustable overall height: 33–41 mm
- Multiple wheel configurations
- Stable load distribution
- Suitable for different installation and load requirements

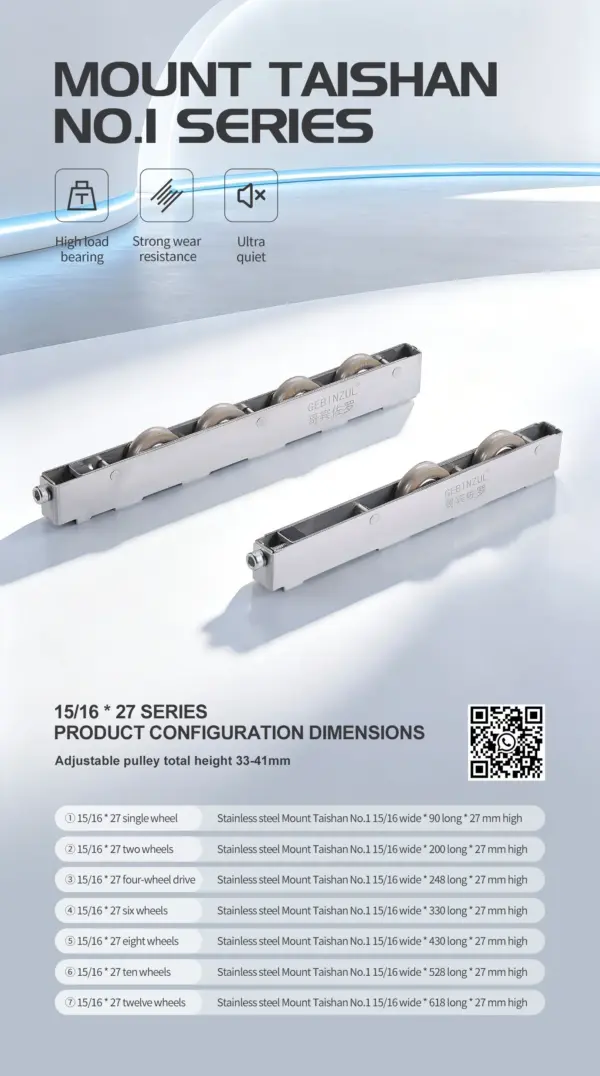

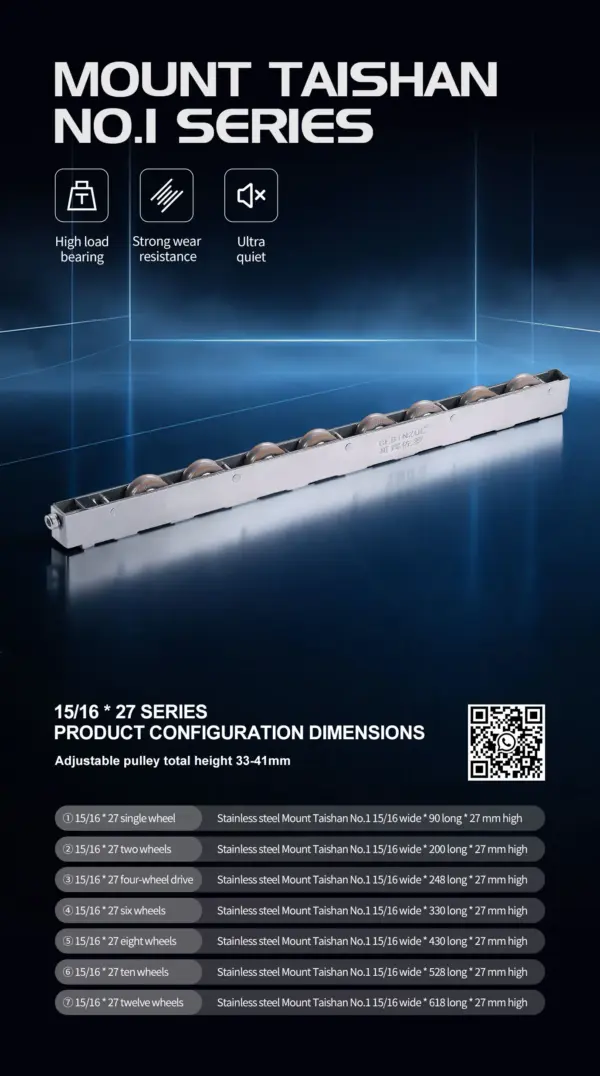

| Wheel Configuration | Dimensions |
|---|---|
| Single wheel | 15/16 W × 90 L × 27 H mm |
| Two wheels | 15/16 W × 200 L × 27 H mm |
| Four wheels | 15/16 W × 248 L × 27 H mm |
| Six wheels | 15/16 W × 330 L × 27 H mm |
| Eight wheels | 15/16 W × 430 L × 27 H mm |
| Ten wheels | 15/16 W × 528 L × 27 H mm |
| Twelve wheels | 15/16 W × 618 L × 27 H mm |
